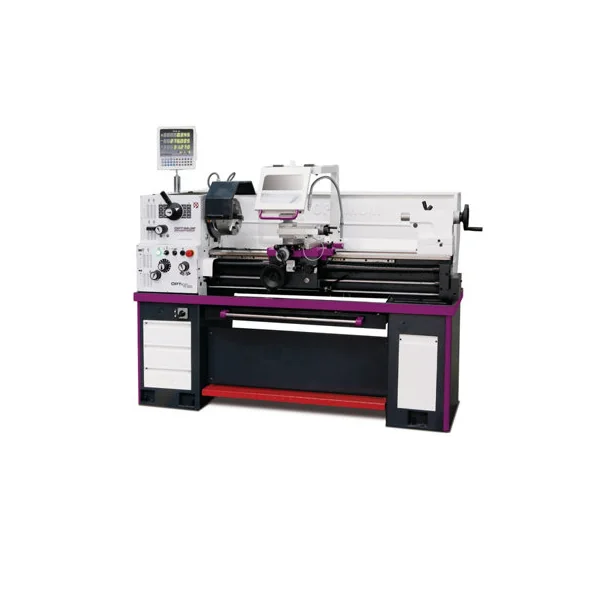

Optimum OPTIturn TH 4010D Manual Metalworking Lathe (3 Phase 400V)

Product information

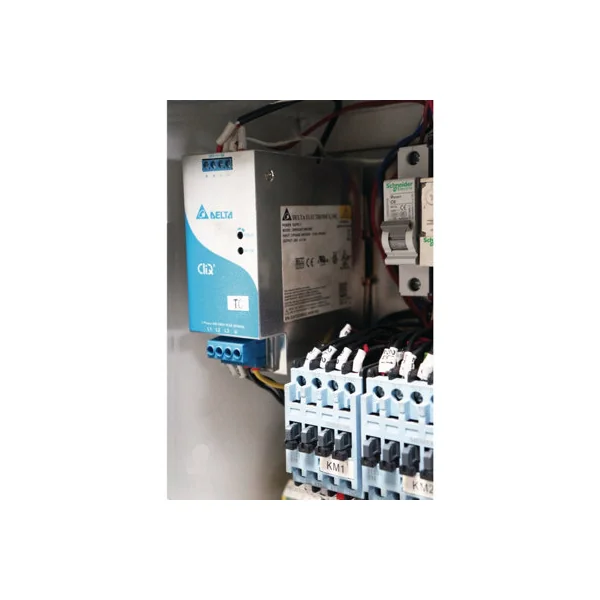

Hardened and ground Z-axis guideway Precisely machined slide Guaranteed concentricity of the spindle nose better than 0.015 mm Spindle holder Camlock DIN ISO 702-2 No. 5 DC 24 volt electrics All guides can be adjusted using wedge strips Right/left rotation switchable on the bed slide Two-channel safety electronics Switch with life cycle calculation, tested in accordance with EN ISO 13849 Smooth-running gear wheels, hardened and ground Main spindle runs in an oil bath Quick, easy and tool-free adjustment using clamping lever Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings Handwheels with adjustable fine scaling 0.04 / 0.02 mm Safety handwheels with push-out function in the X- and Z-axis Adjustment range top slide ± 90 Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron Pull-out chip tray with guide rails Lockable main switch Emergency stop device with foot actuation Machine base with three panels (no compartments) Coolant device LED machine lamp in the chip guard TH 4010 / TH 4010D / TH 4010D: Motor protection switch TH 4010V: Speed display Speed monitoring in accordance with the Machinery Directive Two gear stages Quick-change steel holder 3-E Steel holder 20 x 100 type D for square chisels

• Guarantee – 1 year
