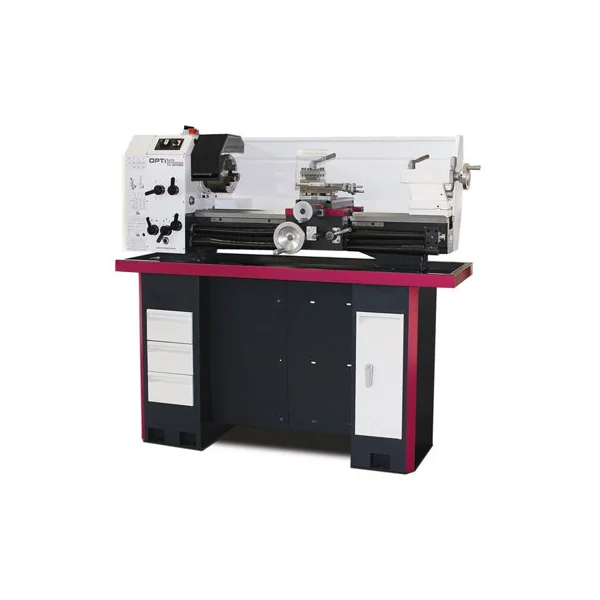

Optimum OPTIturn TU 3008G Guide and traction spindle lathes

Product information

Precise processing Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground Hardened and ground Z-axis guideway Smooth-running feed gear with rounded gears running in an oil bath Guaranteed concentricity of the spindle nose better than 0.009 mm Concentricity on the lathe chuck better than 0.04 mm Quadruple tool holder All guides can be adjusted by wedge strips Right / left rotation in the control panel switchable Hardened main spindle mounted in adjustable, precision tapered roller bearings Tapered roller bearings in P5 quality Hardened spindle nose Large spindle bore Ø 38 mm Lead screw for thread cutting or automatic longitudinal turning Guide and feed shaft stored in two sintered bearings Automatic longitudinal / flat feeds Lead screw and tension spindle cover Tailstock for taper turning ± 5 mm adjustable Tailstock quill and handwheel with adjustable fine scale 0.02 mm Fast, easy and tool-free adjustment by means of a clamping lever Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm Change wheel set in the standard scope of supply for thread cutting Emergency stop impact switch TU 3008 fan belt TU3008G transmission TU 3008V V-belt and brushless drive Quiet, powerful and brushless DC drive with excellent control characteristics High precision steel lining for higher speeds Digital speed display

• Guarantee – 1 year
